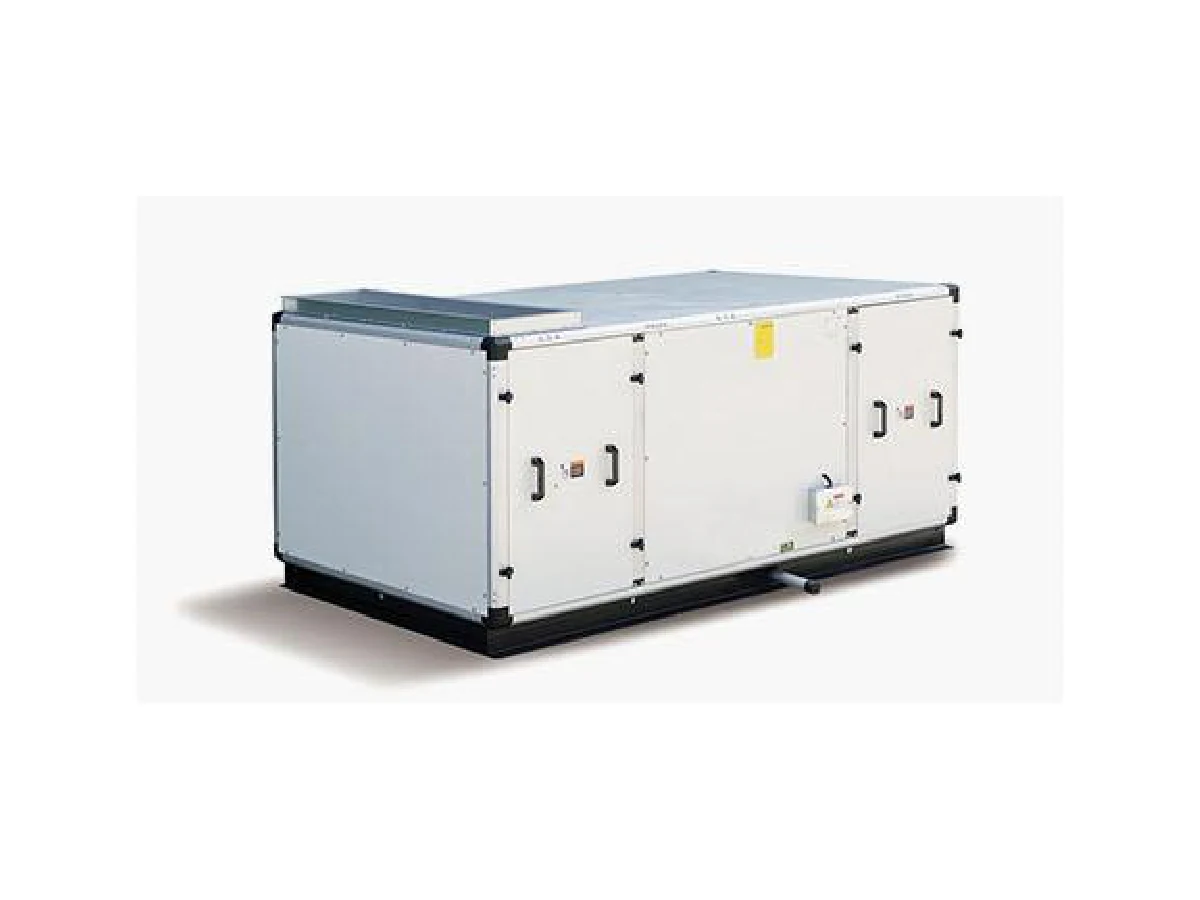

Horizontal Modular Air Handling Unit (AHU)
Send the duty point and installation constraints. We will confirm what model documents and selection support are available for your application.
Detailed Engineering Specifications
Complete technical parameters for model selection and engineering calculations.
| Specification Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|
| Model Reference | Horizontal Air Handling Unit | Customizable upon request |
| Main Applications | Duct Ventilation Systems, Fresh Air Systems, Commercial Building Ventilation | Agree acceptance tolerance in the quotation |
| Airflow Range | 2000 - 60000 m³/h | Agree acceptance tolerance in the quotation |
| Casing | 50mm Polyurethane Foam Double-Skin Panel | Confirm model-specific test conditions |
| Sections | Mixing, G4/F7 Filter, Cooling/Heating Coil, Fan | Agree acceptance tolerance in the quotation |
| Thermal Bridge | TB2 Anti-Thermal Bridge Frame | Agree acceptance tolerance in the quotation |
Configuration Attributes
Need Engineering Sizing & Selection Support?
Provide airflow, pressure, working temperature and voltage so the quoted model can be evaluated against your operating conditions.
Product Engineering & Design Highlights
Horizontal Modular Air Handling Unit (AHU)
Horizontal Modular Air Handling Unit (AHU) is engineered for Duct Ventilation Systems, Fresh Air Systems, Commercial Building Ventilation. Designed for high aerodynamic efficiency, durability, and low noise continuous operation.
Technical Specifications
- Model Reference: Horizontal Air Handling Unit
- Primary Applications: Duct Ventilation Systems, Fresh Air Systems, Commercial Building Ventilation
- Airflow Range: 2000 - 60000 m³/h
- Casing: 50mm Polyurethane Foam Double-Skin Panel
- Sections: Mixing, G4/F7 Filter, Cooling/Heating Coil, Fan
- Thermal Bridge: TB2 Anti-Thermal Bridge Frame
