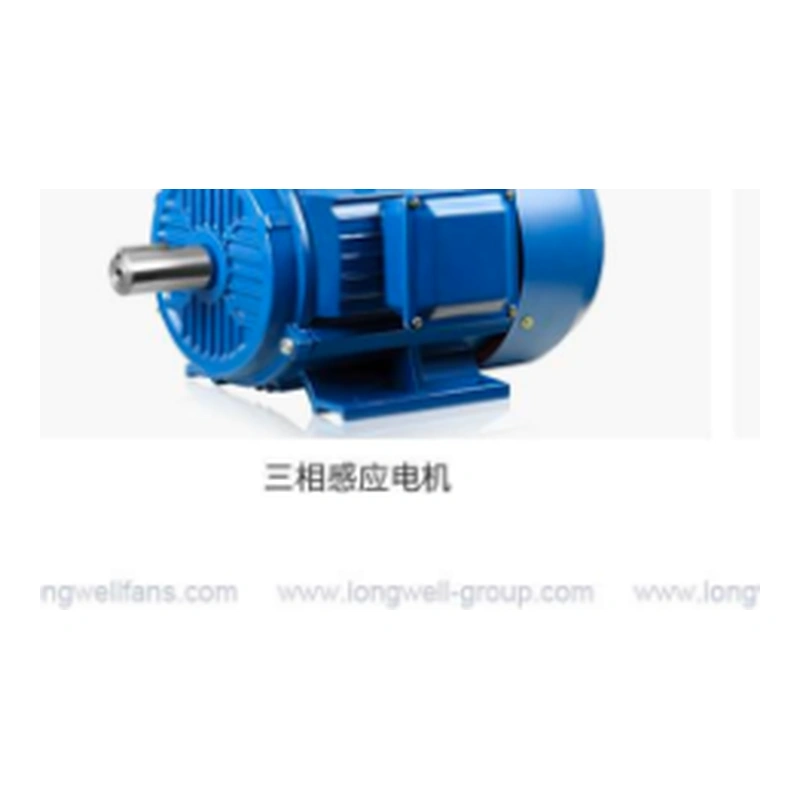

Standard IE3 Three-Phase Asynchronous Induction Motor
Send the duty point and installation constraints. We will confirm what model documents and selection support are available for your application.
Detailed Engineering Specifications
Complete technical parameters for model selection and engineering calculations.
| Specification Parameter | Standard Value / Range | Engineering Notes |
|---|---|---|
| Model Reference | Three Phase Induction Motor | Customizable upon request |
| Main Applications | Fan Drive, HVAC Equipment, Industrial Equipment Supporting Components | Agree acceptance tolerance in the quotation |
| Efficiency | IE3 Premium Efficiency Standard | Agree acceptance tolerance in the quotation |
| Voltage | 380V / 400V / 415V 50Hz, 460V 60Hz | Confirm model-specific test conditions |
| Power | 0.75kW - 315kW | Agree acceptance tolerance in the quotation |
| Duty | S1 Continuous Duty | Agree acceptance tolerance in the quotation |
Configuration Attributes
Need Engineering Sizing & Selection Support?
Provide airflow, pressure, working temperature and voltage so the quoted model can be evaluated against your operating conditions.
Product Engineering & Design Highlights
Standard IE3 Three-Phase Asynchronous Induction Motor
Standard IE3 Three-Phase Asynchronous Induction Motor is built for heavy duty continuous industrial fan drive.
Aerodynamic High-Efficiency Impeller
Confirm the quoted impeller type, balancing grade and vibration acceptance criteria with its model-specific test documents.
Energy-Saving Premium Motor
Confirm the quoted motor voltage, frequency, efficiency, protection class and insulation rating against the operating conditions.
Heavy-Duty Reinforced Casing
Laser cut carbon steel or stainless steel scroll casing with anti-corrosion electrostatic powder coating.
Low-Noise Acoustic Design
Optimized inlet cone and aerodynamic scroll geometry minimize turbulent air noise and pressure drop.
🛠️ Custom Engineering & Optional Accessories
Target Application Industries
Field-proven reliability across commercial, industrial, and specialized sectors.
Commercial HVAC & AHU
Central air conditioning handling units, VAV systems, and building ventilation.
Industrial Exhaust & Fume Removal
Dust collection, welding fume extraction, chemical exhaust, and workshop air renewal.
Boiler Draft & Furnace Air
Forced and induced draft fans for biomass, gas, and industrial steam boilers.
Cleanroom & Medical Ventilation
Ultra-low vibration, high static pressure air supply for pharmaceutical and semiconductor facilities.
Material Drying & Silo Air
Grain drying, agricultural crop cooling, and industrial hot air circulation.
Tunnel & Mine Ventilation
High pressure axial and centrifugal boost ventilation for underground shafts and tunnels.
❓ Frequently Asked Questions & Quality Control
Q: Can you customize the Standard IE3 Three-Phase Asynchronous Induction Motor for my market?
A: Yes. Send target quantity, specification, packaging requirement, destination port, and any standard you need. We will confirm MOQ, lead time, and export quotation.
Q: Can I request samples before bulk order?
A: Sample orders are supported for most products. For machinery and special projects, we can provide technical files, photos, videos, and factory acceptance checks before shipment.
📦 Export Packaging & Transport
Export-ready packaging with protective wrapping, carton or wooden case reinforcement, palletizing when needed, and shipping documents prepared for sea, air, or courier delivery.
