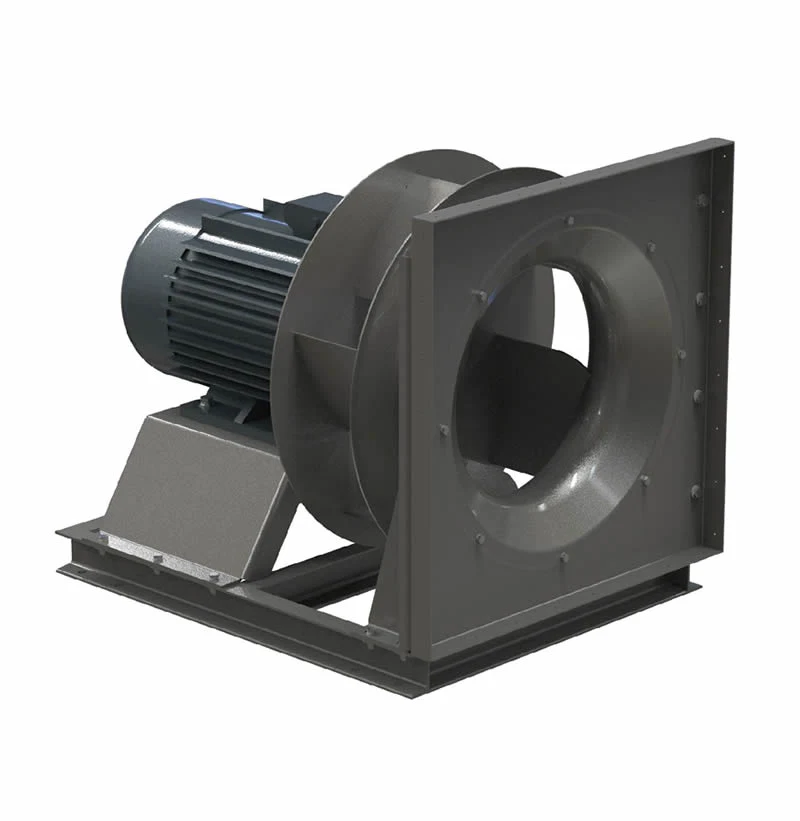

Outlet dampers, inlet guide vanes, variable speed and fan staging can adjust delivered airflow, but the feasible range and power use depend on the fan and system. Compare each control method at the same required airflow and pressure duties using the actual performance data and annual operating profile.
What each method changes
Outlet damper. Adding downstream resistance moves the operating point along the fixed-speed fan curve. Power can fall, remain relatively high or follow another trend depending on the fan's power curve and operating region. Check stability and motor loading; an outlet damper is not universally the cheapest installed option or the most expensive system to operate.
Inlet guide vanes. Suitable vanes introduce pre-rotation and change the fan characteristic. Their effect depends on the fan, vane design, position and opening. Use the applicable combined performance data rather than treating inlet vanes as a fixed percentage saving relative to an outlet damper.
Variable speed. Reducing speed changes the available flow and pressure curves. It can reduce power substantially where the system duty permits, but speed alone does not specify the new operating point. Check the required pressure, minimum flow, fan stability and motor and controller limits.
Staging. With multiple fans, changing the number running changes the combined fan characteristic. Recalculate its intersection with the system curve. Turning off one of several fans does not necessarily reduce total flow or power by that fan's original share. Include isolation or backflow arrangements, transitions, redundancy and control stability.
The cube law: a conditional calculation
For a fixed fan geometry and density at corresponding similarity points, airflow scales with speed, pressure with speed squared and shaft power approximately with speed cubed when efficiency is comparable. A fixed, friction-dominated system whose resistance varies with flow squared can approximately follow these points as speed changes. A system with a fixed pressure requirement, changing dampers or another resistance curve may not.
For a hypothetical case meeting those assumptions, reduce speed to 60% of the reference value. The ratios are:
| Quantity | Calculation | Reference proportion |
|---|---|---|
| Speed | n₂/n₁ = 0.6 | 60% |
| Airflow at the corresponding point | Q₂/Q₁ = 0.6 | 60% |
| Pressure at the corresponding point | Δp₂/Δp₁ = 0.6² | 36% |
| Shaft power with comparable efficiency | P₂/P₁ = 0.6³ = 0.216 | 21.6% |
This is a shaft-power example, not a measured electrical saving or a promise for any particular fan. Electrical input additionally depends on motor, transmission and controller performance at each duty. Do not apply a generic upward adjustment to 25–35% or assign dampers an 80–90% figure and vanes a 55–70% figure without supporting curves or measurements.
Where part of the required pressure remains as flow falls, calculate the operating points from that system curve and each controlled fan curve. Verify that sufficient pressure and a stable operating region remain throughout the range. The DOE fan system sourcebook discusses control alternatives and the limitations that need an application-specific assessment.
Build a comparison from the actual duties
- List required operating cases: airflow, pressure definition, gas conditions and annual hours, including minimum process or ventilation requirements.
- Obtain the relevant performance maps: fixed-speed power curves, vane settings, speed curves or the combined multi-fan arrangement. Include installation and accessory losses.
- Check feasibility first: permitted speed, motor load, stability, noise, cooling, required minimum flow and any safety or emergency mode.
- Compare mains input: state whether each figure is measured or estimated and identify the motor, transmission and controller assumptions.
- Weight by hours: calculate annual energy as the sum of input kW × operating hours for all cases, then apply the actual tariff and relevant demand charges.
A balancing damper may be required even with speed control, and isolation requirements can remain in a staged system. Compare the complete arrangement, including controls and maintenance, rather than treating the methods as mutually exclusive products. For small or infrequently varying duties, installation and service costs can affect the decision.
Specify the speed-control operating envelope
- Lower and upper limits: agree limits from process airflow, available pressure, fan stability, motor cooling and mechanical ratings. Use the actual motor cooling arrangement rather than assuming it always relies on the airstream.
- Motor and drive compatibility: check voltage stresses, cable length, switching conditions and any required filters or bearing-current measures. Suitability is specific to the selected combination.
- Vibration and resonance: identify prohibited operating bands and the approved transition procedure from the mechanical assessment and commissioning results.
- Electrical and control requirements: assess supply harmonics, EMC, sensor positions, control response, alarms and the required failure mode.
- Staging sequence: define fan start and stop transitions, backflow prevention, operating-point checks and how required redundancy is retained.
Measure the baseline before calculating payback
Log representative required duty, fan speed, airflow or validated control measurements and true electrical input over the relevant production or seasonal conditions. A week may or may not represent the year. Motor current alone is not a power log: voltage and power factor change with load, and drive-fed measurements need suitable instruments. The DOE motor-load guide explains why current becomes a poor indicator at light load.
Request an airflow-control comparison. Send the current fan and motor data, system curve or measured duties, operating-hour profile, required control range, electrical supply, access constraints and acceptance criteria. Include baseline input-power measurements so the proposed controls can be compared on a stated energy and cost basis. Plan commissioning measurements for the selected arrangement.
